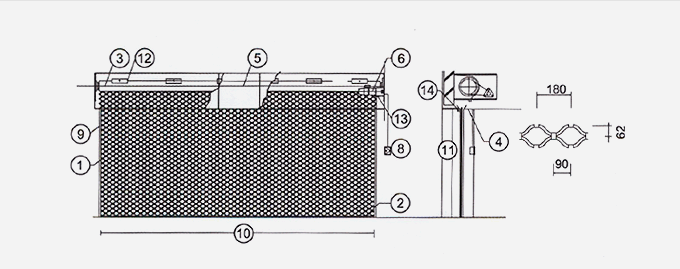

 1. WAVE SHUTTER WAVE PIPE(SUS 304, 1.1 THK, 13.8¥Õ), JOINT RING(SUS 304, 1.5 THK)
 2. BOTTOM BAR Attached to the lowest area of the shutter (finishing materials), SUS 304 THK1.5, 30X30 Angle enhanced
 3. BARREL SHAFT A shaft winding the shutter (KS white pipe)
 4. LINTEL Finishing materials attached to the ceiling and the lower area of the shutter ox (SUS 304 1.2T)
 5. SHUTTER BOX Installed to prevent the shaft from being wound (SUS 304 1.2T or G.I 1.2~1.6T applicable depending on the field)
 6. MOTOR Electro-mechanical open-and-shut system (the equipped Korean-made motor varies depending on shutter weight)
 7. CAB Finishing materials for the cutting areas of pipes (PE1.0 THK 15~30 mm)
 8. PUSH BUTTON Functions as a switch to operate the shutter
 9. GUIDE RAIL Installed to guide the shutter pipes (SUS 304 1.2T ~1.5T)
 10. WIDTH Width of the opening area
 11. HEIGHT Height of the opening area
 12. SHAFT CONNECTING
      BRACKET
Welded to the shaft at 1-m intervals with bolts and functions as a slat board
 13. LIMIT SWITCH Functions as a switch to indicate the upper or lower area where the shutter stops
 14. EMERGENCY SWITCH Functions to automatically stop the shutter in the event of an abnormal operations
